DENTSPLY REPLACEMENT WATER SUPPLY LINE ASSEMBLY

Description

DENTSPLY REPLACEMENT WATER SUPPLY LINE ASSEMBLY

• Replace the Disc Filter (Water) every 3 months or when the Disc Filter (Water) becomes discolored to prevent reduced water flow to the system. The RPI Water Supply Assembly includes two (2) extra Disc Filters (Water) plus a PM Log for your convenience.
• WARNING: Incoming water supply line pressure to the Scaler must be 25 psi (172 kPa) to 60 psi (414 kPa). Water supply line must be shut off or disconnected when Scaler is not in use.
• Also available: Disc Filter (Water) (10-pack) (DSF005), Union Fitting (3/16″) (DSF048), and Cord Strap (White 6″) (RPS672)

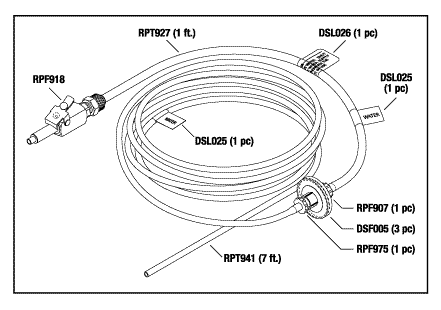

• See Notes below for parts included in this kit

Male Quick Disconnect (1/4″ Poly Auto Shut-Off) (Replacement Part RPF918)
(7 ft.) Tubing (.107″ ID x 3/16″ OD Blue) (Replacement Part RPT941)
(1 ft.) Tubing (.160″ ID x 1/4″ OD Blue) (Replacement Part RPT927)
(3 pc) Disc Filter (Water) (Replacement Part DSF005)
(1 pc) Luer Lock (Male x 5/32″ Barb) (Replacement Part RPF907)
(1 pc) Luer Lock (Female x 1/8″ Barb) (Replacement Part RPF975)
(2 pc) Label (Water) (Replacement Part DSL025)
(1 pc) Label (Caution) (Replacement Part DSL026)

View All Models For Replacement Part DSA047

Replacement Part DSA047
